Electron in Practice: Creating icns Icons

TL;DR

An app for converting PNG to icns on Mac has been created.

Feel free to use it: https://electron-icns.com/

Preface

When packaging an Electron app as a Mac application bundle,

using electron-packager as an example,

the default app icon after packaging looks like this:

icns

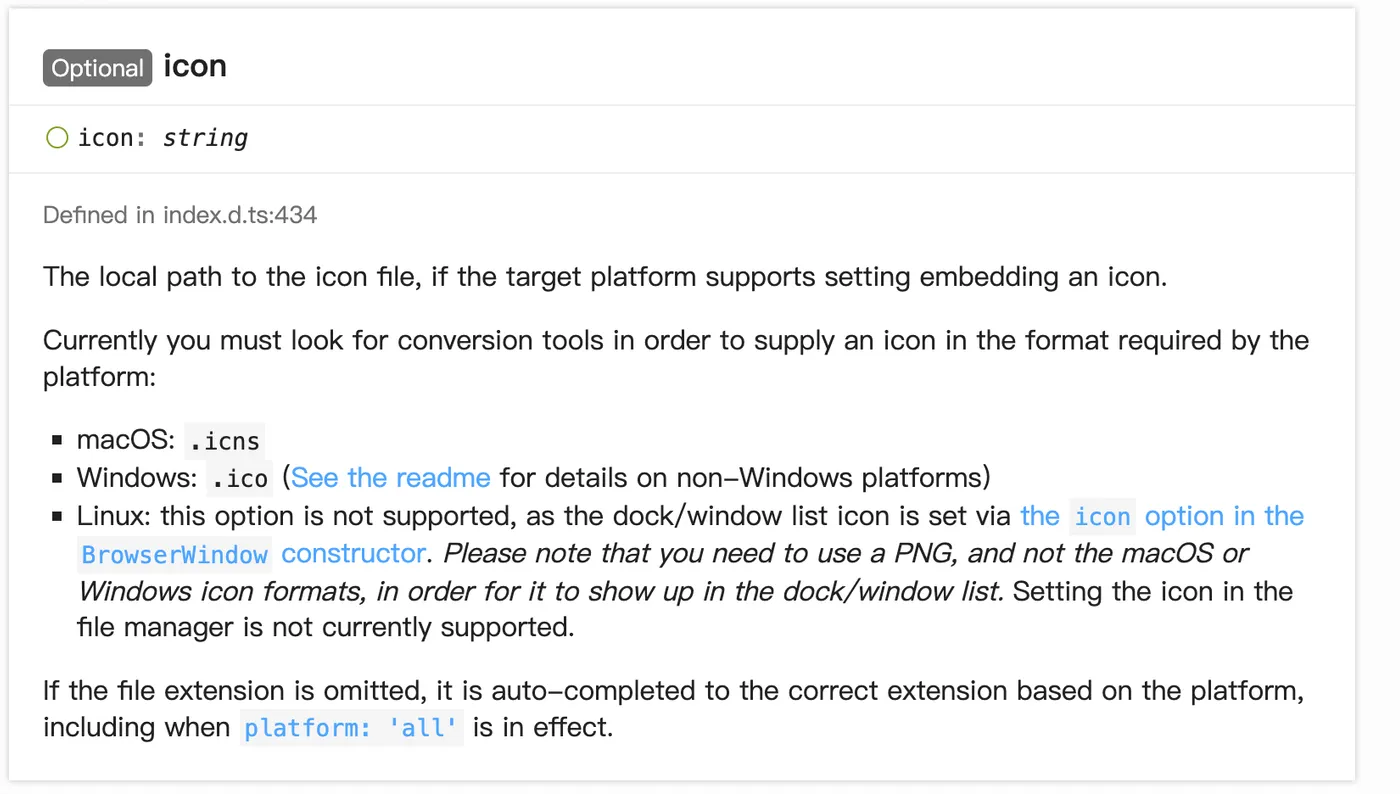

According to the electron-packager docs, you just need to pass the icon field.

However, on Mac you need to provide the icns format: https://electron.github.io/electron-packager/main/interfaces/electronpackager.options.html#icon

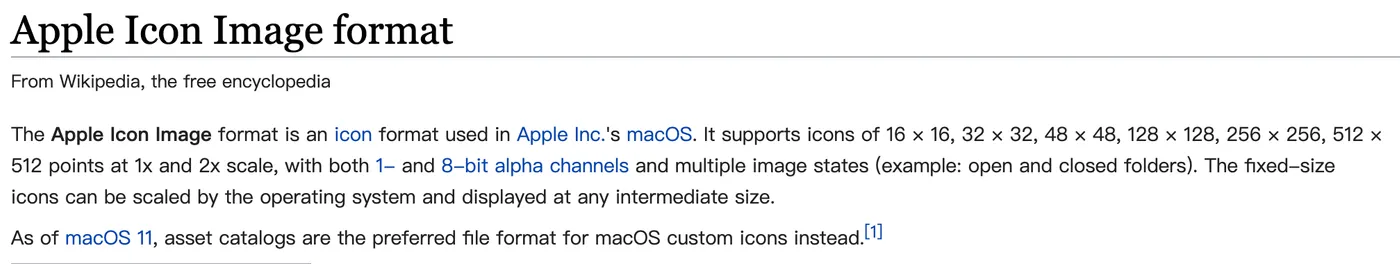

icns is an Apple-specific format that bundles icons of various sizes together.

Creating icns

You can manually create icns icons on Mac.

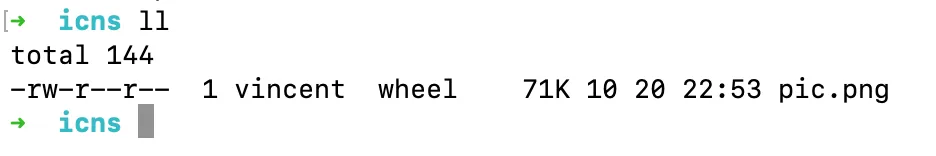

1. Prepare a 1024x1024 transparent PNG icon, e.g. pic.png, and place it in a folder.

2. Create a tmp.iconset folder, then run the following commands:

sips -z 16 16      pic.png --out tmp.iconset/icon_16x16.png
sips -z 32 32      pic.png --out tmp.iconset/icon_16x16@2x.png
sips -z 32 32      pic.png --out tmp.iconset/icon_32x32.png
sips -z 64 64      pic.png --out tmp.iconset/icon_32x32@2x.png
sips -z 128 128    pic.png --out tmp.iconset/icon_128x128.png
sips -z 256 256    pic.png --out tmp.iconset/icon_128x128@2x.png
sips -z 256 256    pic.png --out tmp.iconset/icon_256x256.png
sips -z 512 512    pic.png --out tmp.iconset/icon_256x256@2x.png
sips -z 512 512    pic.png --out tmp.iconset/icon_512x512.png
sips -z 1024 1024  pic.png --out tmp.iconset/icon_512x512@2x.png

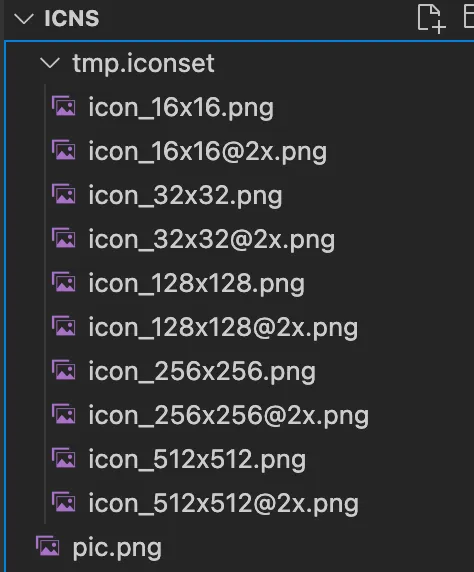

After running, you’ll get icons in various sizes:

3. Run the iconutil command to create the icns icon:

iconutil -c icns tmp.iconset -o icon.icns

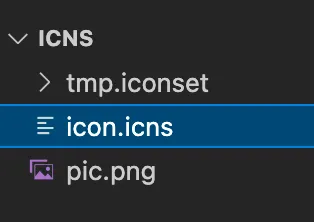

This generates an icns icon file:

4. Pass this icns icon to electron-packager’s icon field and re-package.

You’ll see your custom icon displayed on Mac.

electron-icns

The manual method above is tedious. A library has been created for this — feel free to use it: https://code.insistime.com/#/electron-icns

Via npx

npx electron-icns /path/to/your/png/icon

Via npm global install

npm i -g electron-icns

electron-icns /path/to/your/png/icon

Via devDependencies

Install:

npm i -D electron-icns

Add a script to package.json:

{
  "scripts": {
    "icns": "electron-icns /path/to/your/png/icon"
  },
}

Via JS API

// cjs
const { icns } = require("electron-icns");

// mjs
import { icns } from "electron-icns";

// icns
const icnsPath = await icns(pngPath);

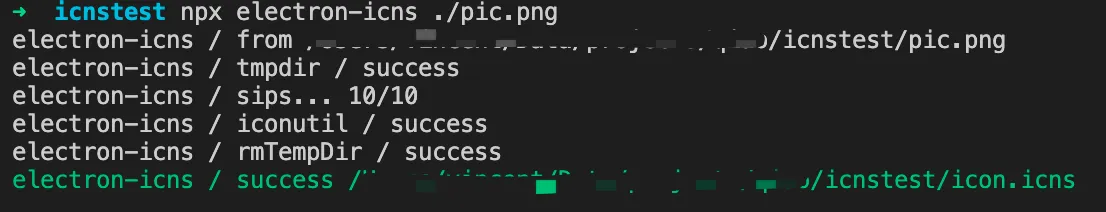

Result

Icon Too Large

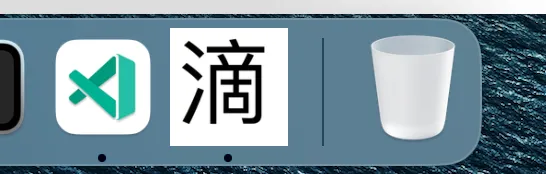

After creating the Mac icns icon,

you may notice the icon appears larger than other app icons.

For example:

The reason is simple —

the icon was designed without padding.

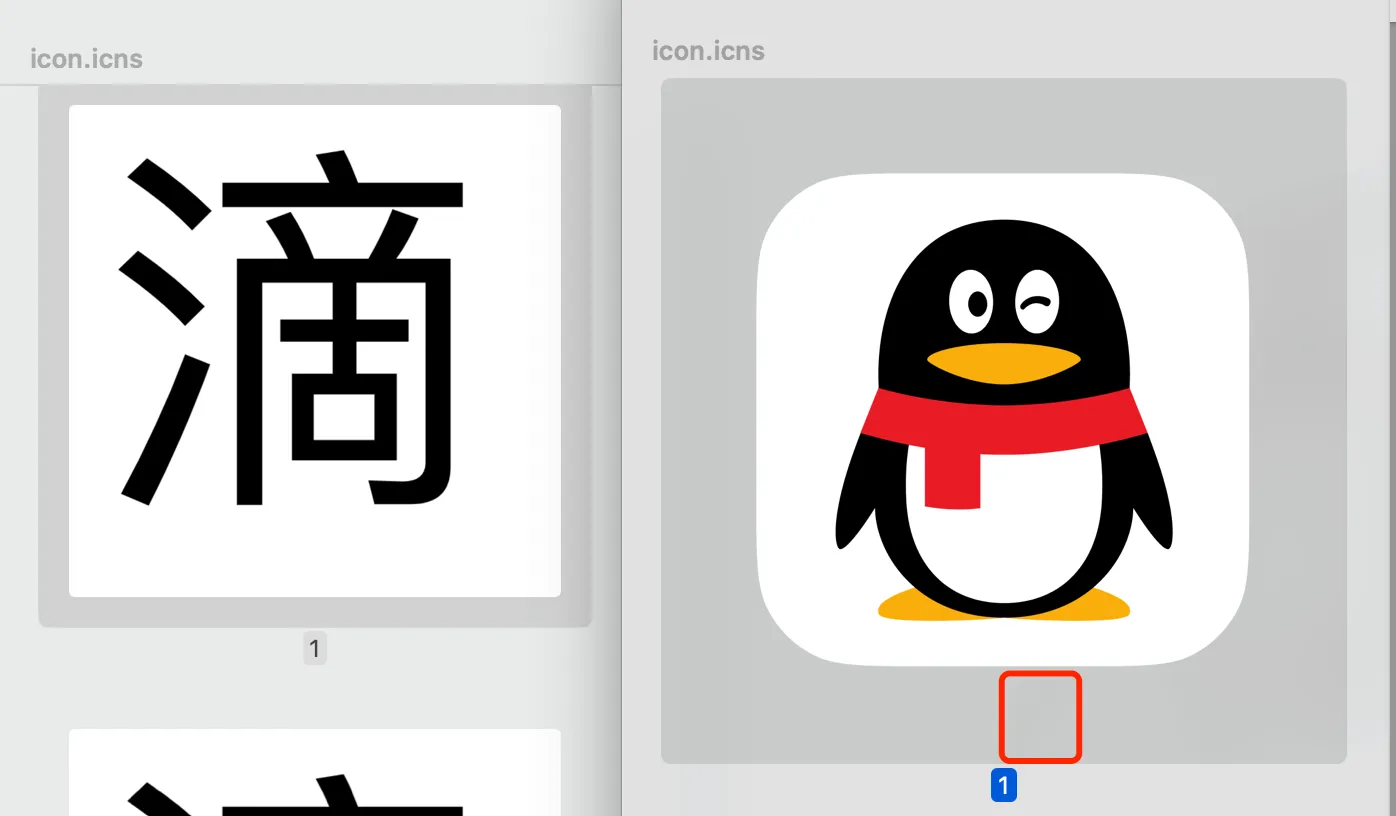

If you open a normal icon and inspect it:

Roughly speaking,

if the PNG size is 1024x1024,

the padding should be about 98px.

Use this as a reference when designing your PNG,

then convert it to icns.

Summary

1. Introduction to icns

2. Manually generating icns icons using sips and iconutil commands

3. Using the electron-icns library to generate icns icons: https://code.insistime.com/#/electron-icns
