Understanding JS Parallel Tasks in One Article

Preface

In development, most scenarios involve sequential code execution,

but some scenarios require running multiple tasks in parallel.

This article explores how to efficiently execute parallel tasks.

Parallel Scenarios

Common scenarios for parallel task execution:

Running multiple requests in parallel
Downloading files in parallel

Parallel Tasks

The common characteristics of tasks in the above scenarios:

Multiple tasks have no dependencies on each other
The completion time of each task is uncertain
All tasks should complete as fast as possible

So we can use setTimeout to simulate parallel tasks,

where timeout can be passed in to simulate tasks with different durations:

/**
 * handler
 * @param {*} timeout
 * @returns
 */
module.exports = function (timeout) {
  return new Promise(function (resolve) {
    setTimeout(() => {
      return resolve(timeout);
    }, timeout);
  });
};

Task Pool

The task pool here is simply a collection of timeout values:

/**
 * values
 */
module.exports = [100, 300, 200, 400];

Callbacks and Completion

When executing parallel tasks, we generally want:

A callback for each task when it completes
A complete callback when all tasks finish

The callback code is as follows:

// q
const q = require('qiao-console');

/**
 * callback
 * @param {*} index
 * @param {*} total
 * @param {*} res
 */
module.exports = function (index, total, res) {
  q.writeLine(index, total, `task ${res} done`);
};

The complete code is as follows:

// q
const q = require('qiao-console');

/**
 * complete
 * @param {*} res
 */
module.exports = function (res) {
  q.clear();
  console.log('all tasks done');
  console.log(res);
};

Serial Execution

First, let’s look at serial execution as a baseline.

Serial execution means tasks run one after another, and the total time is the sum of all task durations.

// q
const q = require('qiao-console');

// vars
const values = require('./_values.js');
const handler = require('./_handler.js');
const callback = require('./_callback.js');
const complete = require('./_complete.js');

// test
(async function () {
  q.clear();

  const results = [];
  for (let i = 0; i < values.length; i++) {
    const res = await handler(values[i]);
    callback(i, values.length, res);
    results.push(res);
  }

  complete(results);
})();

Parallel Execution (IIFE)

Using IIFE (Immediately Invoked Function Expression) to execute tasks in parallel.

The key idea is to start all tasks at once without awaiting each one sequentially.

// q
const q = require('qiao-console');

// vars
const values = require('./_values.js');
const handler = require('./_handler.js');
const callback = require('./_callback.js');
const complete = require('./_complete.js');

// test
(function () {
  q.clear();

  let doneCount = 0;
  const results = [];

  for (let i = 0; i < values.length; i++) {
    (async function (index) {
      const res = await handler(values[index]);
      callback(index, values.length, res);

      results[index] = res;
      doneCount++;

      if (doneCount === values.length) {
        complete(results);
      }
    })(i);
  }
})();

For an introduction to IIFE, see: https://developer.mozilla.org/zh-CN/docs/Glossary/IIFE

The core code after modification:

console.time('qiao-parallel');

for (let i = 0; i < values.length; i++) {
  (async function (i, value) {
    const res = await handler(value);
    callback(i, res);
    if (i + 1 == values.length) {
      complete(values.length);
      console.timeEnd('qiao-parallel');
    }
  })(i, values[i]);
}

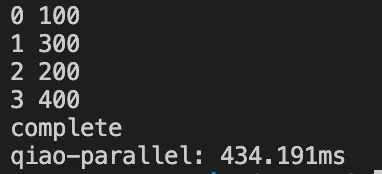

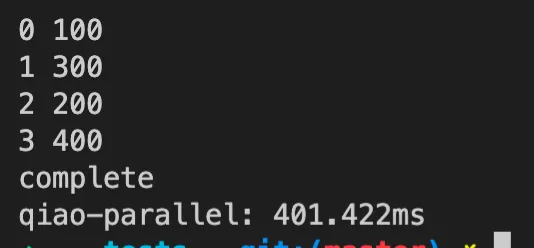

Total runtime: 400ms (max(100, 200, 300, 400))

Parallel Execution (Multi-process)

In Node.js, you can also use multi-process to execute tasks in parallel.

Multi-process task execution uses Node.js’s child_process module.

Usage:

Prepare a JS file for the task
Fork to execute
Communicate via process

For child_process fork usage, see:

https://nodejs.org/dist/latest-v16.x/docs/api/child_process.html#child_processforkmodulepath-args-options

The fork code looks roughly like this:

const cp = child_process.fork(jsPath, args || []);
cp.on('message', function (msg) {
  if (onMsg) onMsg(msg);
});
cp.on('exit', function (code) {
  if (onExit) onExit(code);
});

The handler.js file needs to be modified for fork mode:

// handler
const handler = require('./_handler.js');

// fork handler
async function forkHandler() {
  // check
  if (!process || !process.argv) return;

  // value
  const value = parseInt(process.argv[2]);

  // msg
  const msg = await handler(value);
  process.send(msg);
}

forkHandler();

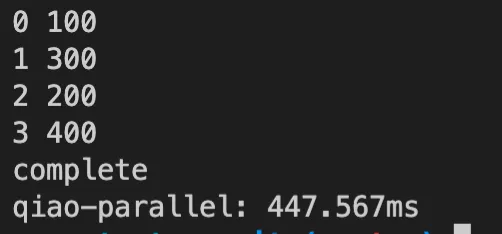

Total runtime: 447ms (max(100, 200, 300, 400) + 47ms)

The runtime is less than serial’s 1s, but more than IIFE’s 400ms.

The extra 47ms can be attributed to process creation and destruction overhead.

Changing the values from 100-400ms to 1-4s to see the effect:

IIFE execution result: total time is still 4s (max(1, 2, 3, 4))

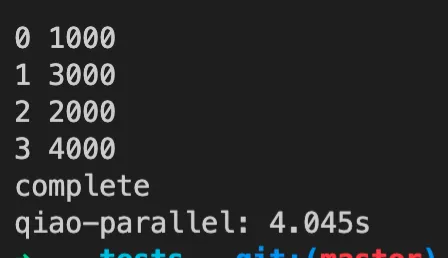

Fork execution result: total time is 4.045s (max(1, 2, 3, 4) + 45ms)

This proves that in multi-process parallel execution,

process creation and destruction takes roughly 40-50ms.

Parallel Execution (Multi-thread)

Node.js introduced the Worker threads module starting from v10.5.0.

See: https://nodejs.org/dist/latest-v18.x/docs/api/worker_threads.html#worker-threads

The worker code is as follows:

const worker = new Worker(jsPath, {
  workerData: value,
});
worker.on('message', function (res) {
  onCallback(callback, index, res);
});
worker.on('error', function (error) {
  console.log(error);
});
worker.on('exit', function () {
  onComplete(complete, valuesLength);
});

The corresponding handler code is modified to:

// worker
const { parentPort, workerData } = require('node:worker_threads');

// handler
const handler = require('./_handler.js');

// fork handler
async function forkHandler() {
  // msg
  var msg = await handler(workerData);
  parentPort.postMessage(msg);
}

forkHandler();

Total runtime: 447ms (max(100, 200, 300, 400) + 34ms)

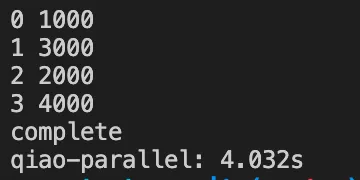

After changing to 1-4s, total runtime: 4.032s (max(1, 2, 3, 4) + 32ms)

The multi-thread overhead is around 30ms,

which is slightly faster than the 40-50ms of multi-process mode.

qiao-parallel

A wrapper npm package, feel free to use it: https://code.insistime.com/#/qiao-parallel

|— Wraps IIFE parallel task execution

// q
const q = require('qiao-console');

// vars
const values = require('./_values.js');
const handler = require('./_handler.js');
const callback = require('./_callback.js');
const complete = require('./_complete.js');

// parallel
const parallel = require('qiao-parallel');

// test
(function () {
  q.clear();

  parallel.parallelByIIFE(handler, values, callback, complete);
})();

|— Wraps multi-process parallel task execution

// q
const q = require('qiao-console');

// vars
const values = require('./_values.js');
const callback = require('./_callback.js');
const complete = require('./_complete.js');

// parallel
const parallel = require('qiao-parallel');

// test
(function () {
  q.clear();

  const jsPath = require('path').resolve(__dirname, './fork-handler.js');
  parallel.parallelByFork(jsPath, values, callback, complete);
})();

|— Wraps multi-thread parallel task execution

// q
const q = require('qiao-console');

// vars
const values = require('./_values.js');
const callback = require('./_callback.js');
const complete = require('./_complete.js');

// parallel
const parallel = require('qiao-parallel');

// test
(function () {
  q.clear();

  const jsPath = require('path').resolve(__dirname, './worker-handler.js');
  parallel.parallelByWorker(jsPath, values, callback, complete);
})();

Summary

Parallel tasks - Scenario introduction
Parallel tasks - Task characteristics
Parallel tasks - Task pool
Parallel tasks - Callbacks
Parallel tasks - IIFE pattern
Parallel tasks - Multi-process pattern
Parallel tasks - Multi-thread pattern
Parallel tasks - https://code.insistime.com/#/qiao-parallel
