Electron in Practice: DMG Installer Customization

Preface

A dmg file is a common installer format on Mac.

The previous articles have already developed and packaged an application using Electron.

This article focuses on customizing the dmg installer.

Learn Electron in One Article

Electron in Practice: Local Database SQLite

Electron in Practice: Managing Electron Projects with Monorepo

Electron in Practice: Mac Packaging

Electron in Practice: Registering an Apple Developer Account

Electron in Practice: Mac App Signing and Notarization

App Icon Customization

A previous article covered how to create a Mac app icns icon.

Continuing from the code branch: https://github.com/uikoo9/dishi-monorepo/tree/mac-sign

The corresponding app icon looks like this:

You will notice an issue: it is a bit larger than a typical Mac app icon.

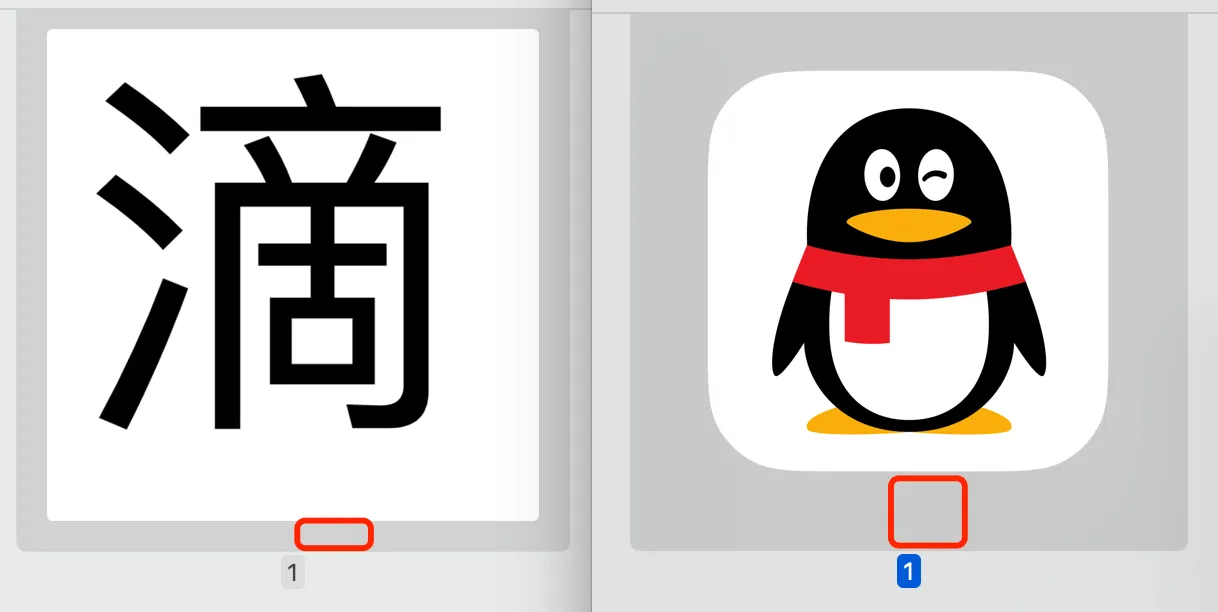

The reason is simple. Compare it with a normal Mac app icon:

You can see the issue is that the two have different padding.

The correct padding is 96px margin for a 1024px canvas.

After modifying the icon with this ratio, the result looks like this:

Here is a recommended simple and useful online drawing tool:

https://www.suxieban.com/index.html#

Expected DMG Effect

Getting a bit off track. Let’s get back to dmg installer customization.

Let’s look at the expected dmg effect using another app as reference.

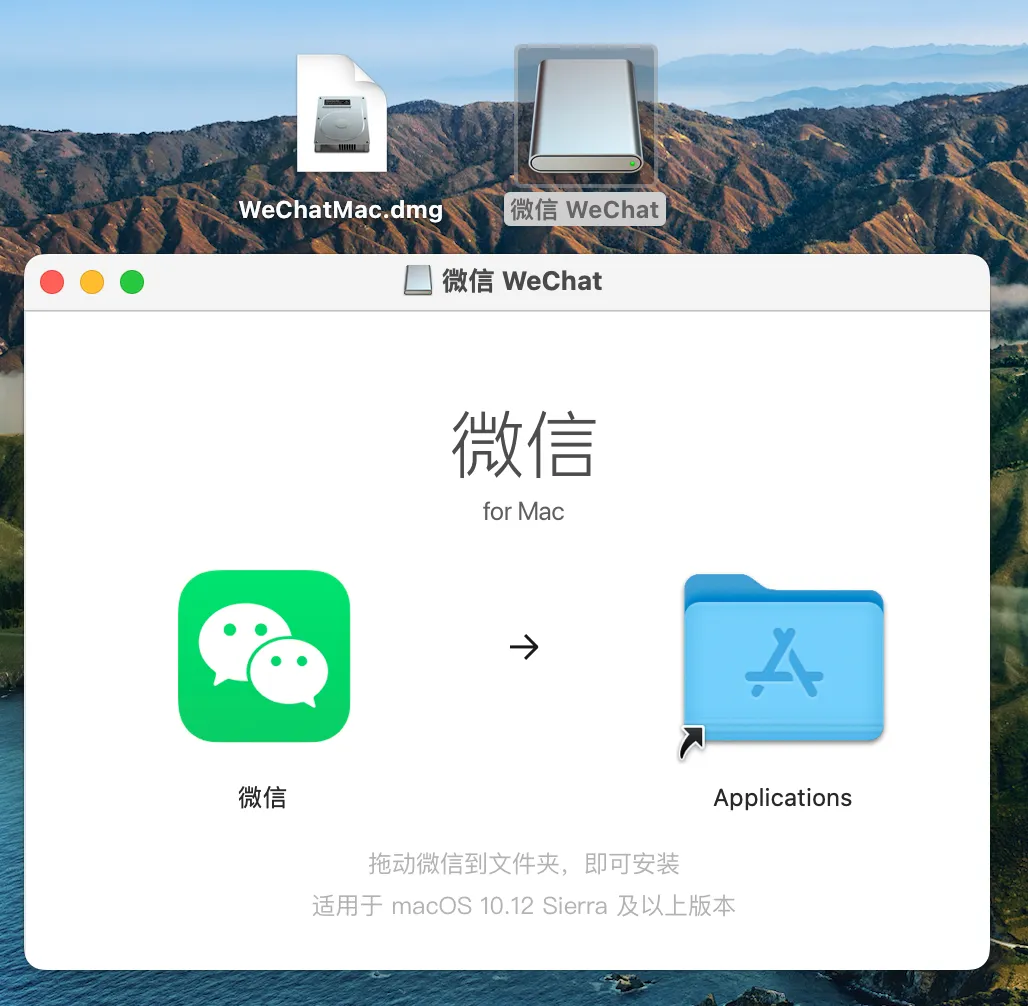

For example, WeChat for Mac:

The dmg customization includes several parts:

The dmg file icon itself. We keep the default.
The icon shown after double-clicking the dmg to mount it, as shown on the right side above.
The view after mounting the dmg, as shown in the lower part above.

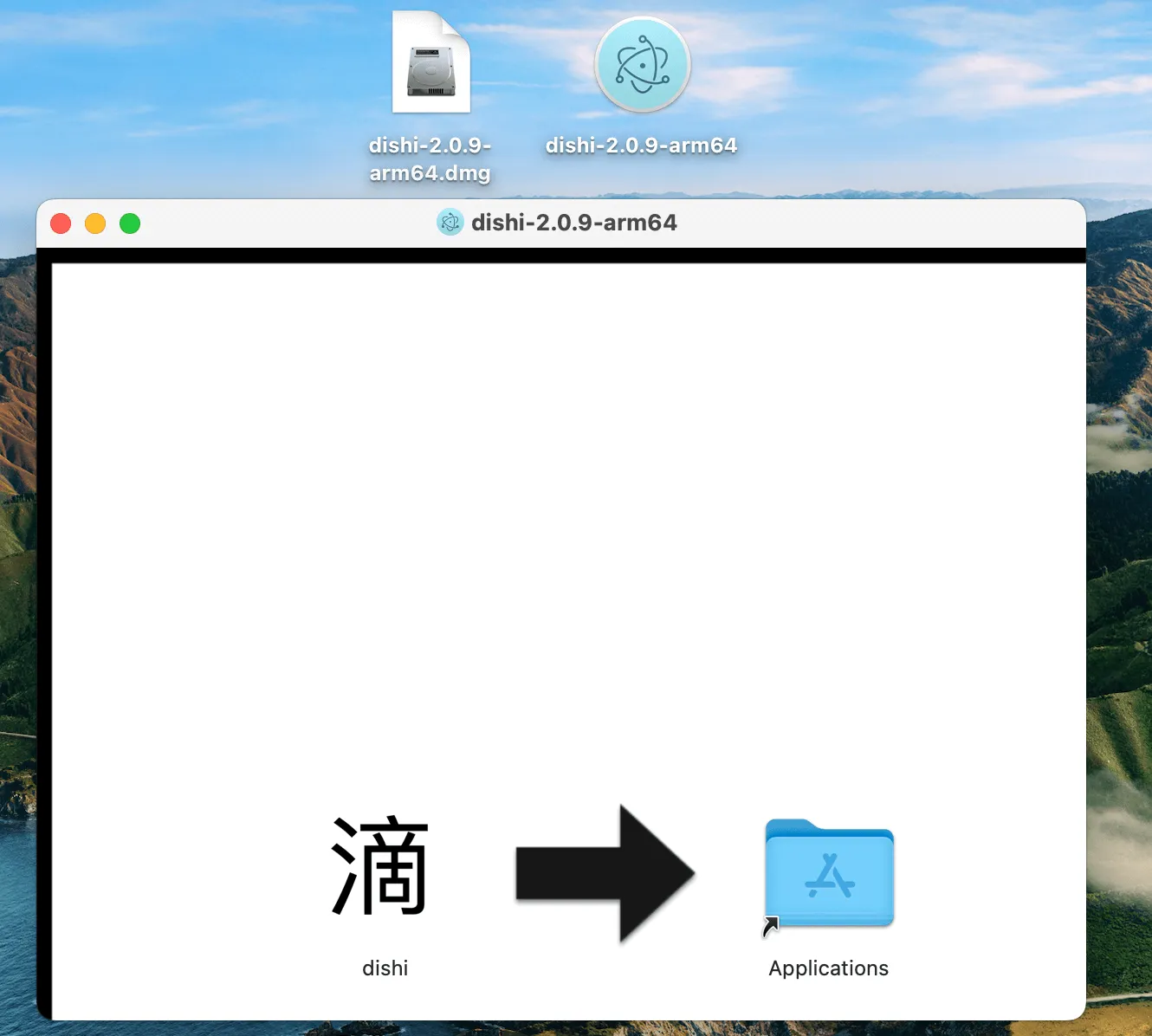

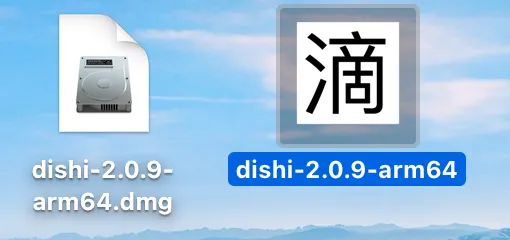

Here is the current app’s effect:

You can see:

After double-clicking the dmg file, the mounted icon is the default Electron icon.
The mounted view is a bit plain and ugly.

Customizing the Mounted DMG Icon

Using qiao-electron-cli,

https://qiao-electron-cli.vincentqiao.com/#/

Installation

npm i -D qiao-electron-cli

Configuration File

The key property is icon.

This icon is used when generating both the app bundle and the dmg.

// pkg
const pkg = require('../dist/package.json');

// const
const arch = process.arch;
const platform = process.platform;
const version = pkg.version;
const iconPath = `pack/icon/icon${platform === 'darwin' ? '.icns' : '.ico'}`;

// qiao-electron config
module.exports = {
  overwrite: true,
  asar: false,
  dir: 'dist',
  out: 'out',

  arch: arch,
  platform: platform,

  name: 'dishi',
  icon: iconPath,
  appVersion: version,
  appCopyright: 'Copyright © 2023 insistime.com All rights reserved',
};

Scripts

First run packmac to generate the Mac app,

then run packdmg to generate the dmg installer.

    "packmac": "qelectron pm ./pack/qiao-electron.config.js",
    "packdmg": "qelectron pd ./pack/qiao-electron.config.js",

Result

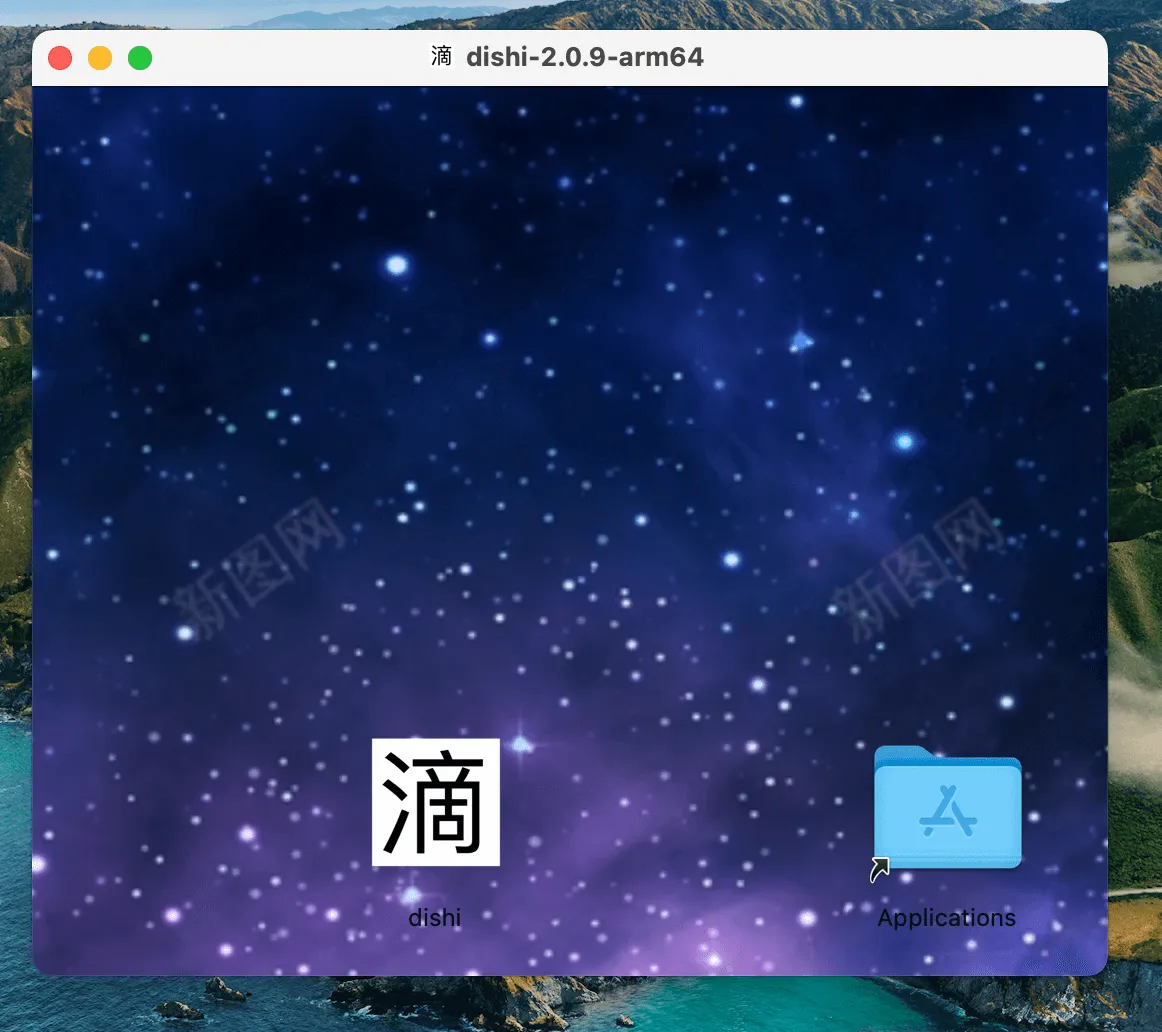

The customized result looks like this:

Customizing the Install View

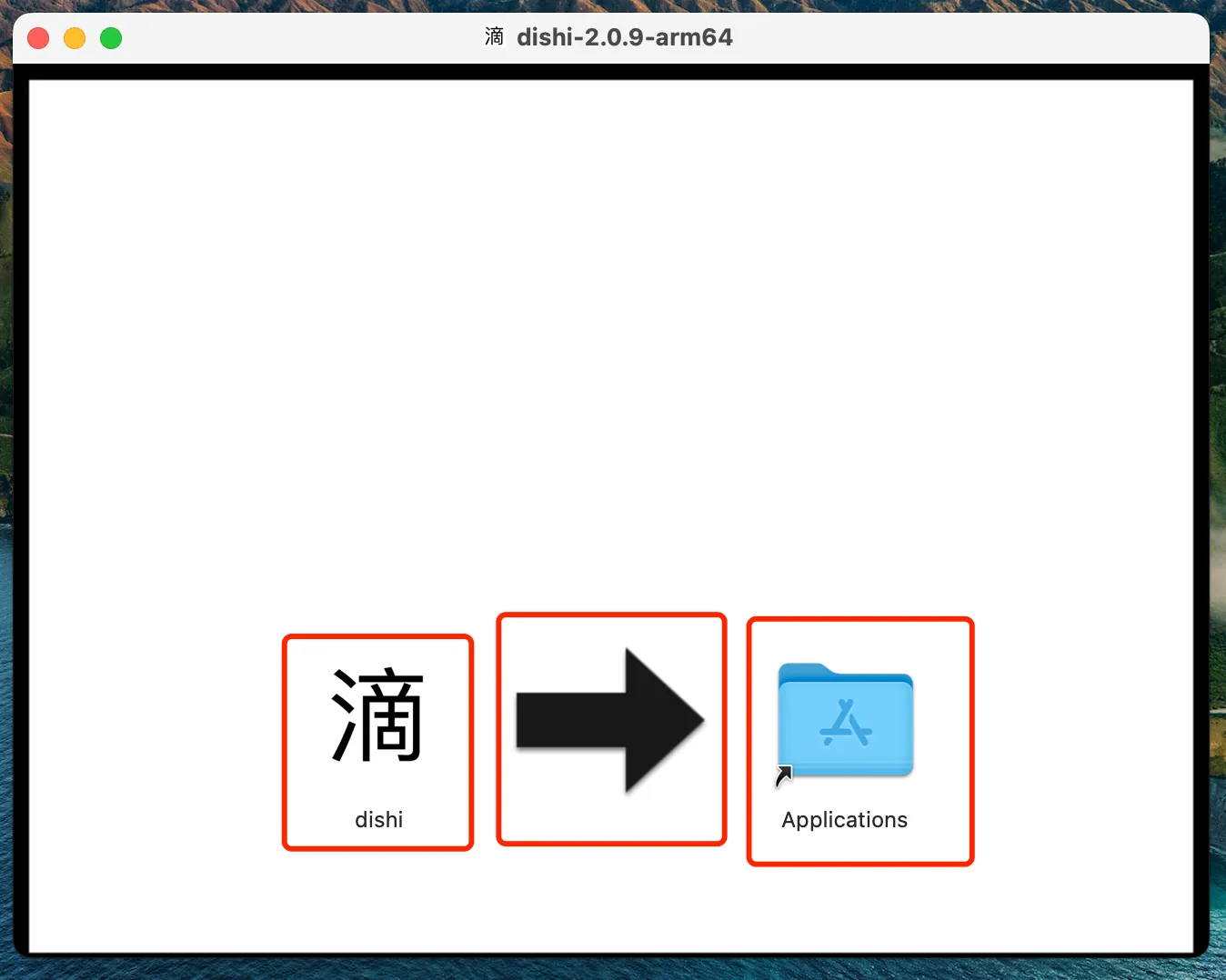

The current install view looks like this:

It consists of 3 parts:

Background image, which includes the black arrow
App icon, which is actually the app bundle and can be double-clicked to launch
Applications shortcut, which usually does not need to be changed

Change the Background Image

First, pick a background image.

Then modify the configuration file above,

adding a dmgBackground property.

{
  // dmg config - background image
  dmgBackground: 'pack/icon/bg.png',
}

After regenerating the dmg, the result looks like this.

You can see the background image has been replaced.

Change Icon Positions

Suppose we want to move the two icons upward.

Add the following configuration:

type “file” represents the app icon position on the left,

type “link” represents the Applications shortcut position on the right.

{
  // dmg config - content positions
  dmgContents: [
    { x: 80, y: 60, type: 'file' },
    { x: 260, y: 60, type: 'link' },
  ],
}

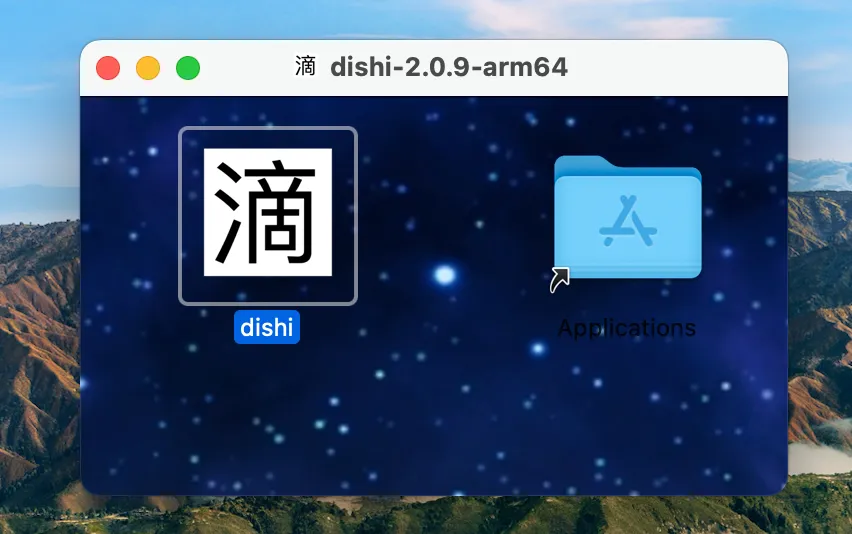

After modifying the config and repackaging:

You can see the two icons have moved to the top of the view.

Change Window Size

After customizing the background image,

you may need to adjust the window size accordingly.

Add the following configuration:

{
  // dmg config - window size
  dmgWindowSize: {
    width: 350,
    height: 140,
  },
}

Final Result

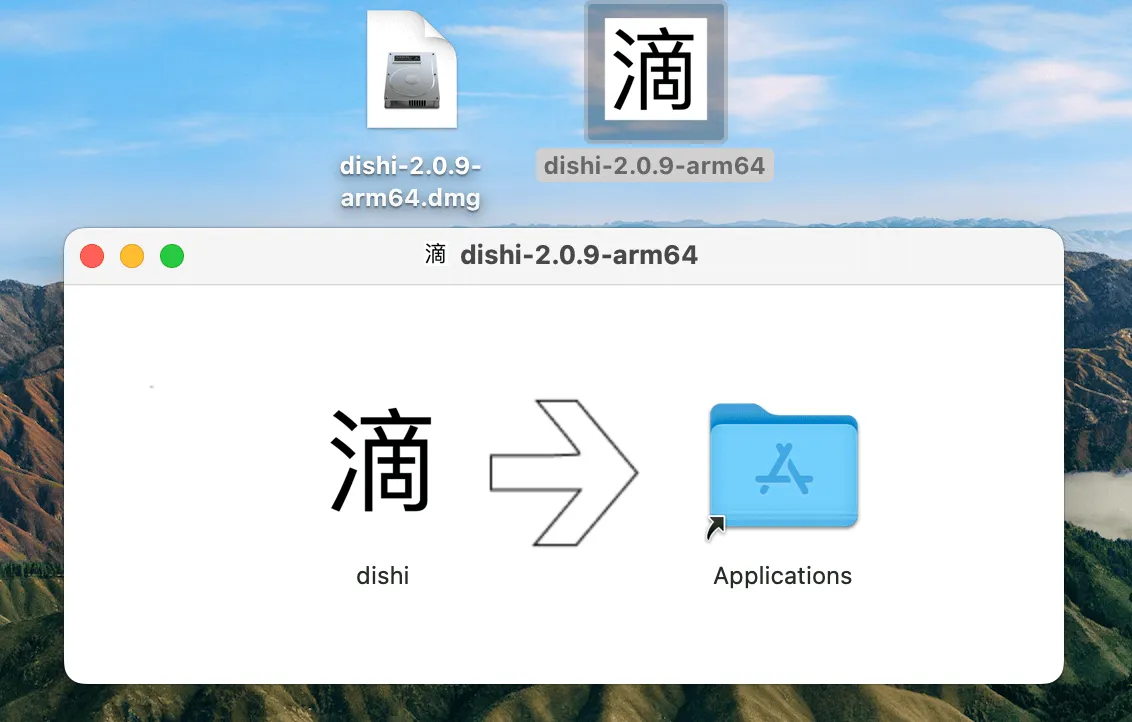

The final result:

Customized the mounted dmg icon
Customized the install view background image
Customized the install view window size

qiao-electron-cli

An npm package was created with the following features:

Package Mac app bundles
Package Mac dmg installers

https://qiao-electron-cli.vincentqiao.com/#/packdmg

To customize the dmg, just add a configuration file like this:

/**
 * dmg options
 */
module.exports = {
  // Customize window
  window: {
    size: {
      width: 500,
      height: 200,
    },
    position: {
      x: 500,
      y: 500,
    },
  },

  // Customize background image
  background: 'pack/icon/bg.png',

  // Content positions
  contents: [
    { x: 160, y: 90, type: 'file' },
    { x: 360, y: 90, type: 'link' },
  ],
};

Summary

Customize the mounted dmg icon
Customize the dmg install view - background image
Customize the dmg install view - icon positions
Customize the dmg install view - window size
qiao-electron-cli, https://qiao-electron-cli.vincentqiao.com/#/
Code repository for this article: https://github.com/uikoo9/dishi-monorepo/tree/custom-dmg
Application for this article (Mac M1): https://static-insistime.vincentqiao.com/21_dishi/dmg/dishi-2.1.1-arm64.dmg
Application for this article (Mac Intel): https://static-insistime.vincentqiao.com/21_dishi/dmg/dishi-2.1.1-x64.dmg
